BREP.io

Source https://github.com/mmiscool/BREP

BREP.io is a browser-based CAD application and JavaScript kernel for feature-based solid modeling. At its core is a BREP-style modeler with explicit geometry/topology objects such as Solid, Face, Edge, and Vertex, paired with an editable feature-history pipeline. It also includes sketch workflows powered by a standalone 2D constraint solver, plus robust manifold booleans (manifold-3d), mesh repair/import tooling, assembly constraints, PMI annotations, and embeddable CAD/sketcher APIs.

This project is in active development and APIs may continue to evolve.

Screenshots

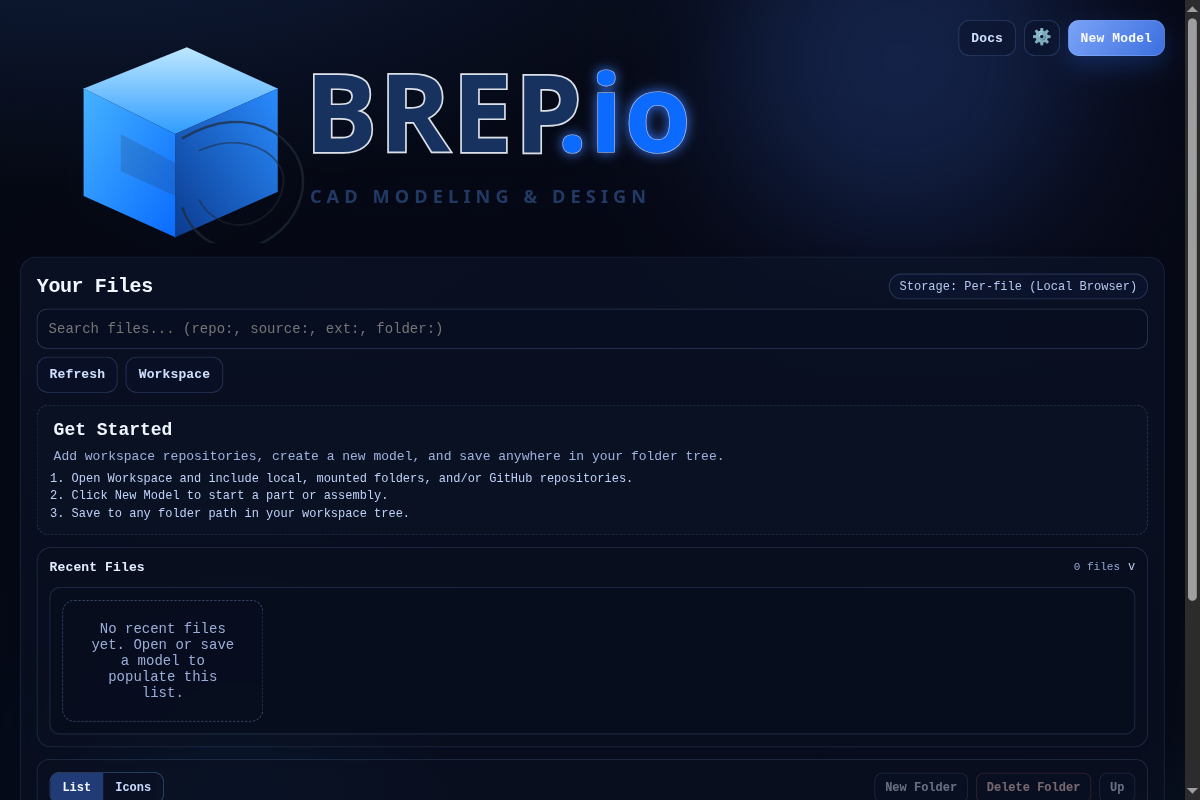

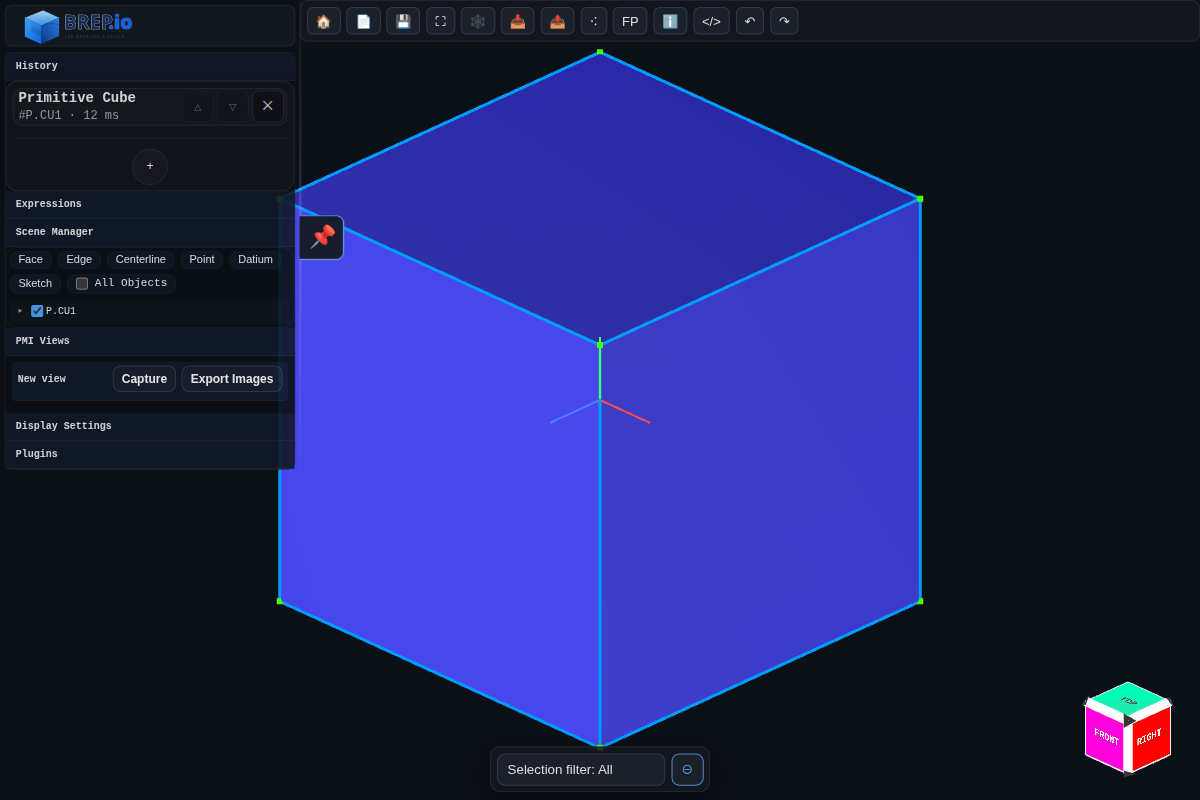

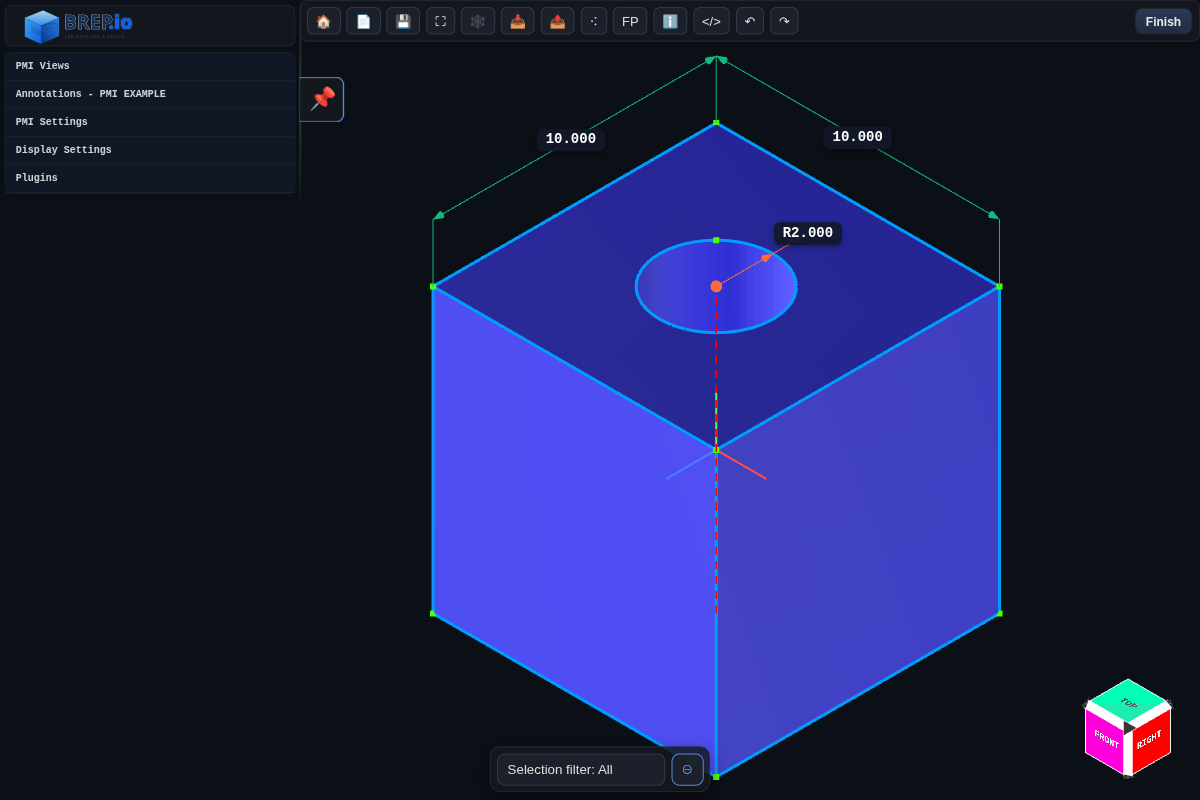

Home Modeling Mode Sketch Mode PMI Mode Image to Face 2D Image to Face 3D

Documentation Index

General:

Core APIs:

System docs:

Mode guides:

Modeling Feature Docs

Feature index:

Primitives and setup:

Solid operations:

Pattern, import, and generation:

Assembly and sheet metal:

Additional implemented features in the codebase include collapse edge, edge smooth, offset face, overlap cleanup, sheet metal hem, and sheet metal cutout.

Assembly Constraints

PMI Annotation Docs

Quick Start

Prerequisites:

  • Node.js 18+
  • pnpm

Install and run locally:

bash
pnpm install
pnpm dev

Then open the Vite URL shown in your terminal.

  • Main app shell: /index.html
  • Direct CAD workspace: /cad.html

Build, Test, and Utility Commands

CommandPurpose
pnpm devPrepares fonts, builds the kernel bundle, then runs the Vite dev server.
pnpm buildProduction build of the app into dist/ (includes kernel build step).
pnpm build:kernelBuilds the ESM kernel bundle into dist-kernel/ and syncs assets.
pnpm testRuns the Node test suite (src/tests/tests.js), writing artifacts to tests/results/.
pnpm liveTestingWatches src/ and tests/ and reruns tests on change.
pnpm captureCaptures docs/dialog screenshots.
pnpm generateLicensesRegenerates dependency and bundled-font license summaries.

Build outputs:

  • dist/: static web app (ready for CDN/web hosting)
  • dist-kernel/: published kernel bundle artifacts

Use as an NPM Package

Package name: brep-io-kernel (ESM-only).

Install:

bash
pnpm add brep-io-kernel

Main imports:

javascript
import {
  BREP,
  PartHistory,
  AssemblyConstraintHistory,
  AssemblyConstraintRegistry,
  CadEmbed,
  Sketcher2DEmbed
} from "brep-io-kernel";

Subpath imports:

javascript
import { BREP } from "brep-io-kernel/BREP";
import { PartHistory } from "brep-io-kernel/PartHistory";
import { CadEmbed } from "brep-io-kernel/CAD";
import { Sketcher2DEmbed } from "brep-io-kernel/Sketcher2D";
import { ConstraintSolver, ConstraintEngine, constraints } from "brep-io-kernel/SketchSolver2D";

Node examples:

CLI helper:

bash
npx brep-io-kernel
npx brep-io-kernel --host 127.0.0.1 --port 4173
npx brep-io-kernel --help

License helper APIs:

javascript
import { getPackageLicenseInfoString, getAllLicensesInfoString } from "brep-io-kernel";

console.log(getPackageLicenseInfoString()); // package license info
console.log(getAllLicensesInfoString());    // package + production dependencies

CommonJS note:

javascript
const { BREP } = await import("brep-io-kernel");

Repository Layout

  • src/BREP: core solid/kernel implementation
  • src/features: feature implementations and dialogs
  • src/assemblyConstraints: assembly solver and constraints
  • src/UI: CAD/sketcher UI and embedding bridges
  • docs/: markdown docs and screenshots
  • apiExamples/: standalone browser API demos
  • tests/ and src/tests/: test assets and test runner

Contributing

See CONTRIBUTING.md.

License

See LICENSE.md. This project uses a dual-licensing strategy managed by Autodrop3d LLC.
