Revolve

Status: Implemented

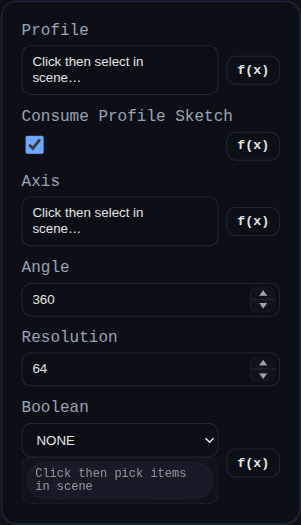

Revolve feature dialog

Revolve sweeps a face or sketch profile around an edge-defined axis to create lathe-style solids.

Inputs

  • profile – a face or sketch containing a face.
  • consumeProfileSketch – when true (default), removes the source sketch after a successful revolve.
  • axis – an edge that defines the rotation axis. The feature samples the edge polyline/geometry in world space.
  • angle – revolution angle in degrees (0–360). Values below 360 create end caps.
  • resolution – segment count used for the rotational sweep tessellation.
  • boolean – optional union/subtract/intersect against other solids.

Behaviour

  • Boundary loops are read from the profile’s metadata when available so holes remain aligned; otherwise edge polylines are sampled.
  • The feature builds start/end caps for partial revolves and names side faces using the first profile’s edge labels.
  • After the revolve solid is created the optional boolean helper runs. Source sketches are flagged for removal when consumeProfileSketch is enabled, and consumed boolean operands are removed automatically.
