Explode Body

Status: Implemented

Explode Body applies view-specific transforms to selected solids/components in PMI mode without editing base feature geometry.

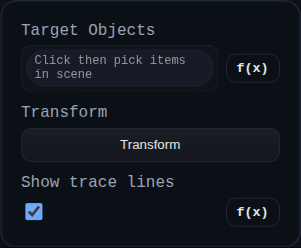

Inputs

• id – optional annotation identifier.
• targets – one or more SOLID or COMPONENT references.
• transform – translation, rotation, and scale delta for this explode step.
• showTraceLine – toggles dashed trace lines from original to displaced position.

Behaviour

• Captures original transforms per target and can restore them when the PMI explode view is reset.
• Applies transforms sequentially with persistent snapshot bookkeeping to avoid cumulative drift.
• Draws optional trace lines in overlay space for visual exploded-view guidance.
