Sheet Metal Cutout

Status: Implemented (engine-backed)

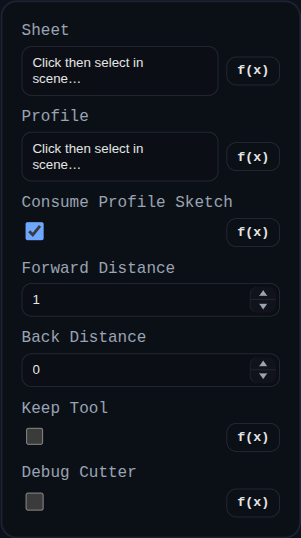

Sheet Metal Cutout feature dialog

Sheet Metal Cutout removes material from an existing sheet-metal model using a sketch/face/solid profile.

Inputs

  • sheet – target sheet-metal solid (or a face/edge on that solid).
  • profile – sketch, face, or external solid used as the cutout profile/tool.
  • consumeProfileSketch – removes source sketch after success when enabled.
  • forwardDistance / backDistance – profile extrusion depth controls (for sketch/face profiles).
  • keepTool – keeps the generated cutter solid in scene.
  • debugCutter – keeps internal cleanup cutter for diagnostics.

Behaviour

  • Resolves sheet-metal source from explicit sheet selection (with fallback resolution when possible).
  • Rejects invalid self-references (for example selecting a face from the same target sheet body as the profile).
  • Attempts midplane/tree-native cut mapping first; for eligible solid tools it can fall back to legacy boolean-recorded cutouts.
  • Rebuilds and replaces the sheet-metal model, persists cutout summaries in persistentData.sheetMetal, and optionally keeps cutter bodies for debugging.
