Tube

Status: Implemented

Builds a tubular solid along one or more connected path edges, with optional hollow core and optional downstream boolean operation.

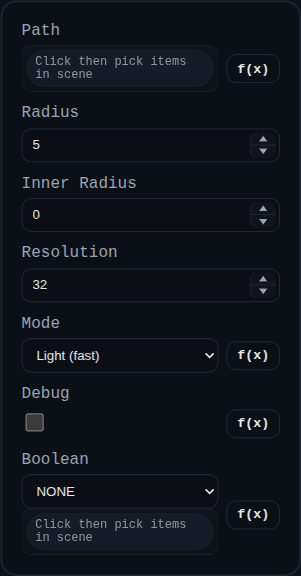

Inputs

• path – one or more EDGE references that form the tube centerline.
• radius – outer radius (must be positive).
• innerRadius – optional hollow radius (0 creates a solid tube).
• resolution – segments around the circumference.
• mode – Light (fast) or Heavy (slow) generation strategy.
• debug – emits extra path/build diagnostics.
• boolean – optional union/subtract/intersect against selected solids.

Behaviour

• Resolves and chains selected edge polylines into one or more connected paths.
• Generates tube bodies using the selected build mode, trimming and capping open-path ends as needed.
• Produces watertight outer/inner walls for hollow tubes when innerRadius > 0.
• Applies the optional boolean operation through the shared helper and returns only resulting solids.
