Angle Dimension

Status: Implemented

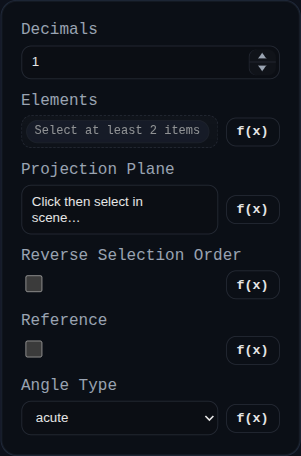

Angle Dimension dialog

Angle dimensions report the sweep between two selected faces/edges in PMI mode.

Inputs

  • id – optional annotation identifier.
  • targets – exactly two references (FACE or EDGE).
  • planeRefName – optional projection plane/face override.
  • reverseElementOrder – swaps target order to flip the measured side.
  • angleType – acute, obtuse, or reflex.
  • isReference – marks dimension as reference.
  • decimals – display precision.

Behaviour

  • Resolves directional vectors from targets, builds a local 2D measurement basis, and draws angle arc + witness lines.
  • Persists dragged label position and reuses it on rebuild.
  • Uses PMI formatting hooks for final label text rendering.
